Name: Horizontal Billet Heating Rod Heater Oven Stove Steel Iron Industrial Heating Induction Heating Metal Metallurgy Machinery
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYSQ-TC-60A (τρεις φάσεις)
Price: 2000 USD
Availability: InStock

Σπίτι > προϊόντα > Ηλεκτρικό σύνολο δοκιμής >

Horizontal Billet Heating Rod Heater Oven Stove Steel Iron Industrial Heating Induction Heating Metal Metallurgy Machinery

industrial steel billet heating rod

induction heating oven for metallurgy

metal heating machinery with warranty

Τόπος καταγωγής:

Κίνα

Μάρκα:

YUYANG

Πιστοποίηση:

Αριθμό μοντέλου:

YYSQ-TC-60A (τρεις φάσεις)

Επικοινωνήστε μαζί μας

Ζητήστε ένα απόσπασμα

Πληροφορίες για το προϊόν

Δύναμη εργασίας:

340V-430V

Μέγιστο ρεύμα εισόδου:

90Α

Ισχύς εξόδου:

60 KW

Κυμαινόμενη συχνότητα:

5-20KHz

Ο ρυθμός ροής του νερού ψύξης:

0,08-0,16Mpa 12L/Min

Σημείο προστασίας θερμοκρασίας νερού:

50C

Μέγεθος προϊόντος:

κύρια: 81*53*126CM Κουτί σπείρας: 170*105*10CM

Καθαρό βάρος :

κύριο : 102kg Κουτί σπείρας: 78kg

Επισημαίνω:

industrial steel billet heating rod

induction heating oven for metallurgy

metal heating machinery with warranty

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 Σετ

Τιμή

$2000

Συσκευασία λεπτομέρειες

κουτί από κόντρα πλακέ

Χρόνος παράδοσης

5-10 εργάσιμες ημέρες

Όροι πληρωμής

T/T, L/C, Western Union

Δυνατότητα προσφοράς

200 σετ το μήνα

Συγγενικά προϊόντα

Βίντεο

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Βρείτε την καλύτερη τιμή

Βίντεο

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Βρείτε την καλύτερη τιμή

Βίντεο

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Βρείτε την καλύτερη τιμή

Βίντεο

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

8613825729462

sales03@yuyangtest.com

86-769-26622869

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

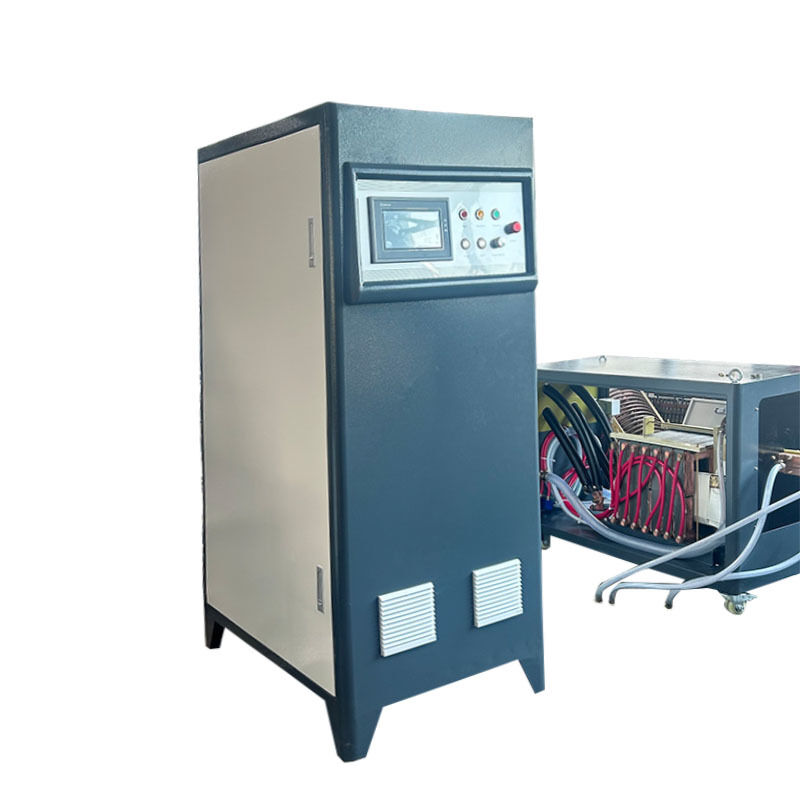

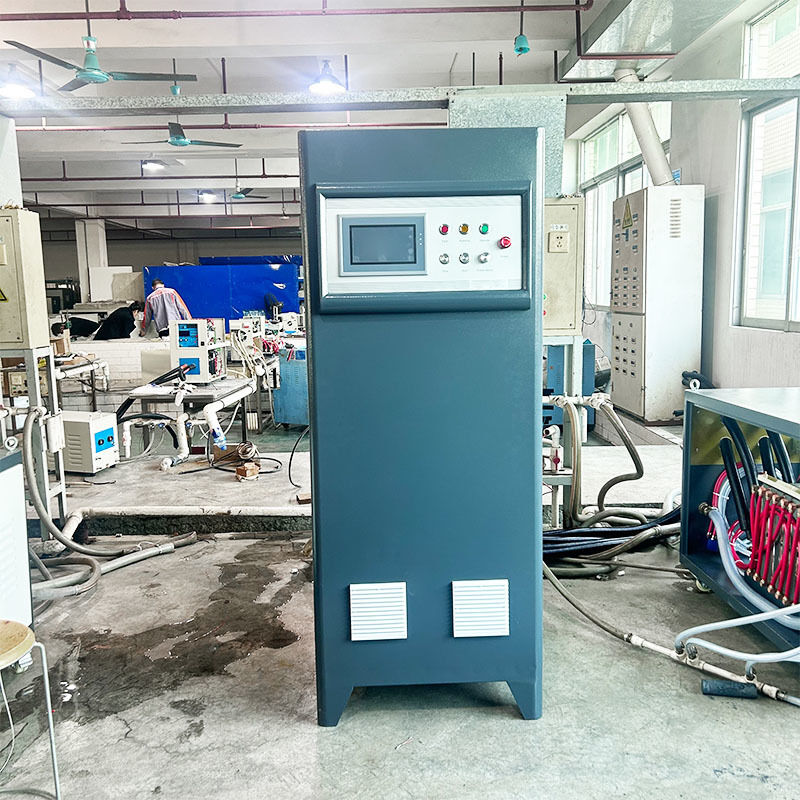

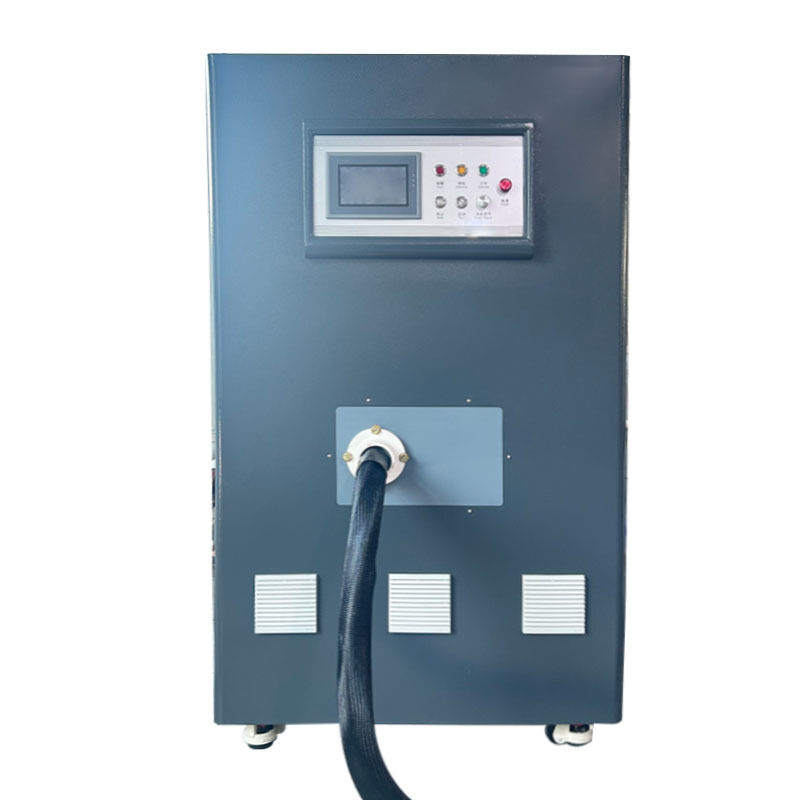

Horizontal Billet Heating Rod Heater Oven

Industrial induction heating equipment for steel, iron, and metal metallurgy applications, designed for efficient and precise thermal processing.

Key Characteristics

IGBT inverting device with automatic frequency tracking
High-frequency operation with 70-80% energy savings compared to traditional heating methods
Secure low-voltage operation with comprehensive safety features
Manual and automatic regulation with over-voltage, over-current, water deficiency, phase failure, and over-temperature protection
No open flame, noise, or pollution - environmentally friendly and fire-safe operation
Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications

Advanced Features

Utilizes advanced electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals to fusion temperatures without direct contact, providing safe, economical, and pollution-free technical solutions.

Operational Advantages

Portable Design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers, with monolithic shell design resistant to weak acids and alkalis
Complex Metal Heating: Hand-held machine head with amorphous magnetic core material provides wider frequency range and superior heating for irregular shaped workpieces
Efficient Operation: Rapid heating within 8 seconds, stable magnetic field output, ideal for air conditioning, refrigeration, and complex welding applications

Technical Parameters

Model	YYSQ-TC-60A (Three phase)
Work Power	340V-430V
Maximum Input Current	90A
Output Power	60KW
Fluctuating Frequency	5-20KHZ
Output Current	400-4500A
Cooling Water Flow Rate	0.08-0.16Mpa 12L/Min
Water Temperature Protection	50°C
Main Unit Dimensions	81×53×126 cm
Coil Box Dimensions	170×105×10 cm
Main Unit Net Weight	102 kg
Coil Box Net Weight	78 kg

Industrial Applications

Brazing materials: copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal combinations
Glasses welding, fishing tool welding, hardware appliances welding
Carbide saw and saw-tooth welding, carbide blade welding
Jewelry and watches welding
Electronic industry: motor rotor hot-cooperation, electrode silver and tin soldering
Metal implants, bulbs fight electrode
Band accessory soldering, golf head, pipe welding
Communication equipment soldering, copper coaxial cable connector soldering

Frequently Asked Questions

Company Background: Based in Guangdong, China since 2018, serving global markets including South Asia, Eastern Asia, Domestic Market, Southeast Asia, Eastern Europe, North America, Oceania, and Western Europe
Quality Assurance: Pre-production samples and final inspection before shipment ensure consistent product quality
Product Range: Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Competitive Advantage: High-tech enterprise specializing in developing and manufacturing comprehensive testing equipment with technical expertise
Service Support: Accepts FOB, CFR, CIF, EXW delivery terms; multiple payment currencies and methods including T/T, L/C, D/P D/A, Credit Card, Western Union, Cash; English and Chinese language support
