Name: Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: ΕΥΕ009
Price: 11957 USD
Availability: InStock

Σπίτι > προϊόντα > Περιβάλλοντος θαλάμου δοκιμής >

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Constant Temperature Test Chamber

Humidity Stability Testing Equipment

Environmental Test Chamber with Warranty

Τόπος καταγωγής:

Κίνα

Μάρκα:

YUYANG

Πιστοποίηση:

Αριθμό μοντέλου:

ΕΥΕ009

Επικοινωνήστε μαζί μας

Ζητήστε ένα απόσπασμα

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Πληροφορίες για το προϊόν

Εξουσία:

220V

Εύρος θερμοκρασίας:

-40ºC-+150ºC

Εύρος Υγρασίας:

20%~98% R.H

Χρόνος Ψύξης:

1°C/min (μέσος ρυθμός ψύξης)

βάρος (kg):

120 κιλά

θερμότητα:

Ζεσταίνουμε περίπου 3,0°C/λεπτό

Επισημαίνω:

Constant Temperature Test Chamber

Humidity Stability Testing Equipment

Environmental Test Chamber with Warranty

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 τεμ

Τιμή

negotiable

Συσκευασία λεπτομέρειες

ΞΥΛΙΝΟ ΚΟΥΤΙ

Χρόνος παράδοσης

7-30 ημέρες

Όροι πληρωμής

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Δυνατότητα προσφοράς

5 PC το μήνα

Συγγενικά προϊόντα

Salt Spray Cyclic Corrosion Test Chamber Test Equipment for Electronics

Βρείτε την καλύτερη τιμή

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Βρείτε την καλύτερη τιμή

Laboratory Salt Spray Test Chamber for Corrosion Test Environmental Climate Test Chamber

Βρείτε την καλύτερη τιμή

Βίντεο

Περιβαλλοντική Κλιματική Θάλαμος Δοκιμών με Σταθερή Θερμοκρασία και Υγρασία για Εξοπλισμό Δοκιμών

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

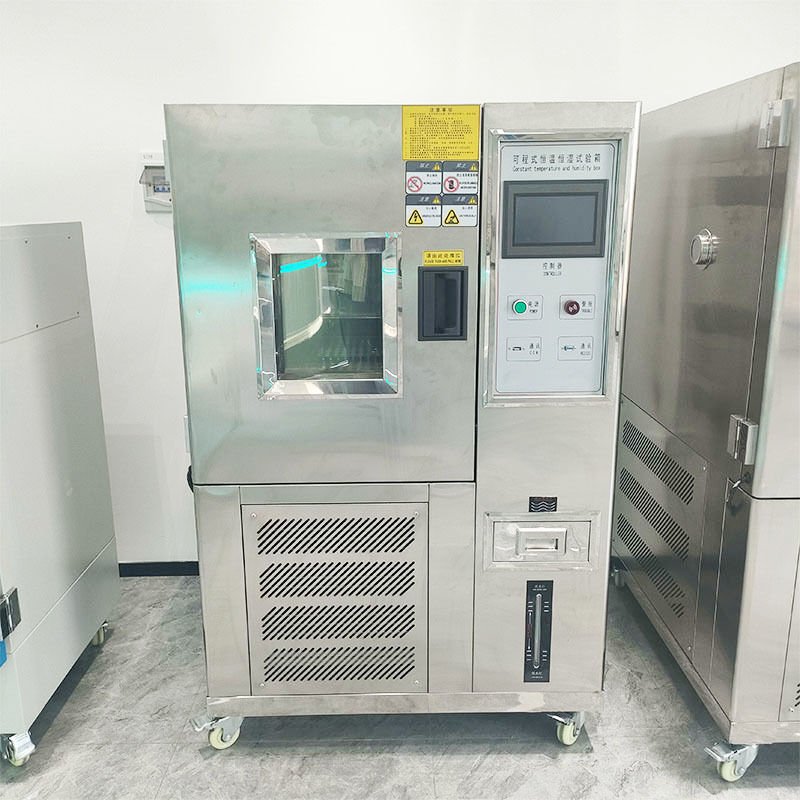

Constant Temperature and Humidity Testing Equipment

Professional environmental test chamber designed for stability testing under controlled temperature and humidity conditions.

Applications

This equipment tests material resistance to heat, cold, dry, and humid conditions. Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace products, and more.

Key Features

Precise control from 5% to 98% R.H. ±0.5% and -20°C to 150°C ±0.5°C
Widely used for heat, cold, dry, and humidity resistance testing
Ideal for conditioning samples prior to testing
Designed for quality control across multiple industries including electronics, electrical equipment, automotive, metals, foodstuffs, chemicals, and building materials

Technical Specifications

Model	YYE009-50L
Inner Size (W×H×D)	35×36×40 cm
External Size (W×H×D)	48×61×110 cm
Temperature Range	-20°C to +150°C
Humidity Range	20% to 98% R.H.
Temperature Accuracy/Uniformity	0.1°C / ±2.0°C
Temperature Fluctuation	±0.5°C
Humidity Accuracy/Control Accuracy	±0.1% / ±2.5%
Heating/Cooling Rate	Heating: ~3.0°C/min; Cooling: ~1.0°C/min
Chamber Materials	Inner: SUS#304 Stainless Steel; Outer: Advanced cold plate nano paint
Insulation Materials	High-temperature resistant, high-density foam insulation
Cooling System	Air cooling/single segment compressor (-20°C)
Power Supply	AC220V 50/60Hz & 1
Weight	120 kg

Standard Components

Watching window
50mm testing hole
PL internal bulbs
Wet and dry bulb gauze
Partition plate
Castors ×4
Foot cups ×4

Safety Protection

Fuse switch
Compressor overload switch
Refrigerant high and low pressure protection switch
Super humidity over-temperature protection switch
Fuse protection
Failure warning system

About YUYANG Instrument

DONGGUAN YUYANG INSTRUMENT CO., LTD. is a high-tech enterprise specializing in the R&D and manufacturing of testing equipment including fire testing equipment, environmental test chambers, textile testing equipment, and more. With decades of experience, YUYANG maintains a leading position in providing high-quality, cost-effective testing solutions that comply with international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, and IEC.

Our products serve numerous sectors including scientific research institutions, universities, inspection authorities, automotive parts, electronics, electrical appliances, lithium batteries, plastics, telecommunications, aerospace, and textiles.
