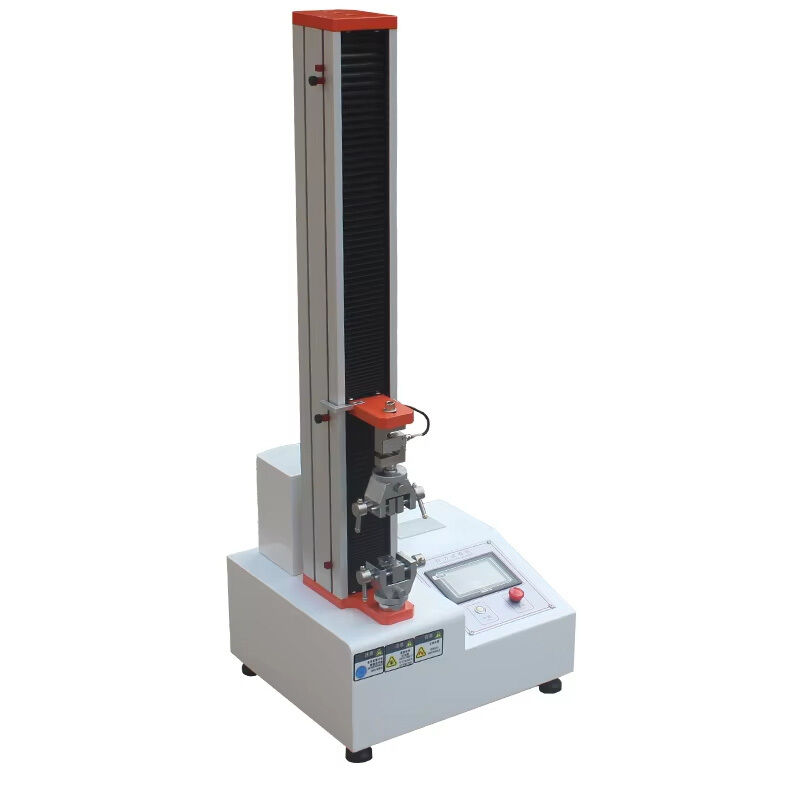

Digital Electronic Tensile Testing Machine
Advanced electronic universal testing machine for comprehensive material testing applications across various industries.
Product Applications
Suitable for testing tensile strength, peeling strength, deformation rate, breaking force, peeling force, and opening force of various materials including plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber, and other products.
Industry Applications
Tape, automotive, ceramics, composite materials, construction, food and medical equipment, metal, paper, packaging, rubber, textiles, wood, communication, and various special-shaped materials.
Testing Standards Compliance
GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ISO 527, ASTM E4, BS 1610, DIN 52121, ISO 7500, EN 10002, ASTM D628, ASTM D638, ASTM D412
Testing Capabilities

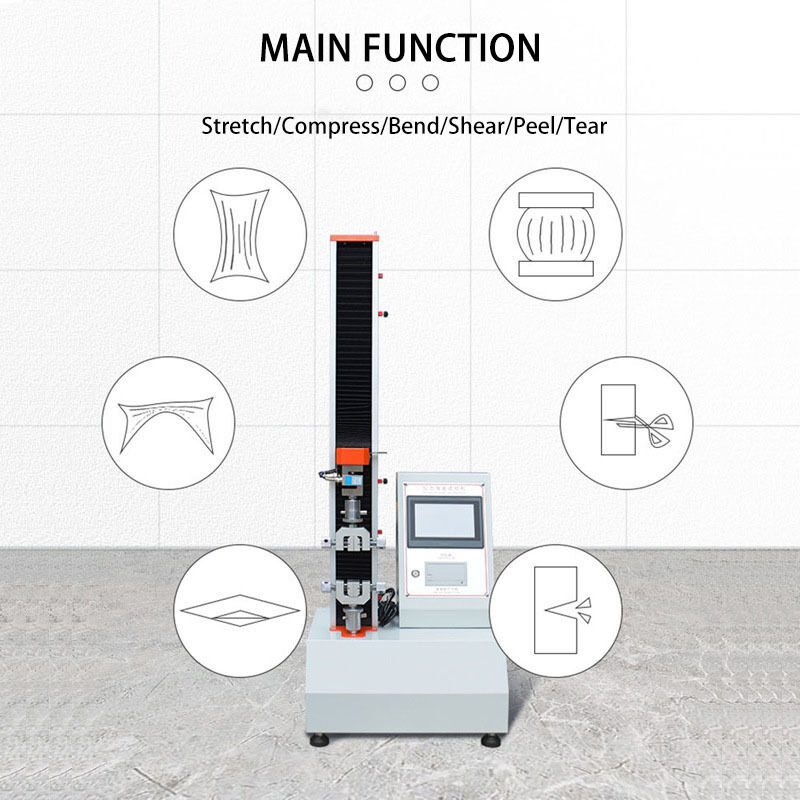

Tests physical properties of various materials, finished products, and semi-finished products. With different fixtures, performs tests including tension, compression, holding, pressure retention, bending, tearing, peeling, adhesion, and shearing. Primarily used to test mechanical properties of metals (tension, compression, bending) and automatically calculates parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, and modulus of elasticity.
Key Features
Advanced Design: Fully computerized operation with integrated panel and aluminum profile plate structure for enhanced load efficiency and structural rigidity.
Precision Engineering: High precision, low resistance ball screws and guide columns for accurate testing results.
Servo Motor Drive: Advanced servo motor drive system with servo driver for high transmission efficiency, stable operation, low noise, and accurate speed control.
Computer Control System: QCTech testing software for complete test parameter setting, status control, data collection & processing, result display, and printing.
Technical Parameters
| Parameter |
Specification |
| Software Operating System |
English |
| Force Units |
N, KN, Kgf, Lbf (freely convertible) |
| Length Units |
mm, cm, in (freely convertible) |
| Control Modes |
Speed, load fracture, running time configurable via software |
| Curve Types |
Load-displacement, Load-time, Displacement-time, Stress-strain, Strain-time, Stress-time |
Available Test Data
Maximum strength, minimum strength, fracture value, upper/lower yield strength, tensile strength, compressive strength, modulus of elasticity, elongation, maximum value, minimum value, average value (select before ordering)
Safety Features
Multiple protections including overload, overcurrent, overvoltage, undervoltage, overspeed, stroke limit. Data results follow standard report format specified by current standards.
