Name: Touchscreen Frequency Induction Heating 200kw LGBT High Quality HeatFor Pipeline Surface Induction Heat Treatment Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYSQ-TC - 200AB
Price: 313,500.00 USD
Availability: InStock

Σπίτι > προϊόντα > Ηλεκτρικό σύνολο δοκιμής >

Touchscreen Frequency Induction Heating 200kw LGBT High Quality HeatFor Pipeline Surface Induction Heat Treatment Machine

200kw induction heating machine

pipeline surface heat treatment machine

touchscreen frequency induction heater

Τόπος καταγωγής:

Κίνα

Μάρκα:

YUYANG

Πιστοποίηση:

CE, ISO

Αριθμό μοντέλου:

YYSQ-TC - 200AB

Επικοινωνήστε μαζί μας

Ζητήστε ένα απόσπασμα

Πληροφορίες για το προϊόν

Εκτιμημένη παραγωγή δύναμης:

200 KW

Εύρος συχνότητας:

1-15KHZ

Τρέχουσα είσοδος:

300Α

Μέγεθος προϊόντος:

κύρια: 870*550*1610mm; μετασχηματιστής: 1100*420*770mm

Καθαρό βάρος:

κύριος: 185 κιλά, μετασχηματιστής: 178 κιλά

Μικτό βάρος:

50C

ΚΥΚΛΟΣ ΚΑΤΑΣΚΕΥΗΣ:

100%

Μάρκα:

YUYANG

Ο ρυθμός ροής του νερού ψύξης::

0,08-0,16Mpa 12L/Min

Δύναμη εργασίας:

380V 50Hz / 60Hz

Επισημαίνω:

200kw induction heating machine

pipeline surface heat treatment machine

touchscreen frequency induction heater

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

Σύνολο/σύνολα

Τιμή

US $ 613000-14000

Συσκευασία λεπτομέρειες

1160 x 1040 x 1320mm

Χρόνος παράδοσης

5-15 μέρες

Όροι πληρωμής

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Δυνατότητα προσφοράς

100 σετ το μήνα

Συγγενικά προϊόντα

Βίντεο

100kw DSP fully digital control - Special equipment for melting and overall hot forging Induction Heating LGBT High Quality

Βρείτε την καλύτερη τιμή

Βίντεο

Touchscreen Frequency Induction Heating 300kw LGBT High Quality Heat Automatic Sealing Machine Shaft Quenching Machine

Βρείτε την καλύτερη τιμή

Βίντεο

Touchscreen Frequency Induction Heating 200kw LGBT High Quality HeatFor Pipeline Surface Induction Heat Treatment Machine

Βρείτε την καλύτερη τιμή

Βίντεο

Touchscreen Frequency Induction Heating 120kw LGBT High Quality Heat Treatment Machine From Professional Manufacturer

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

8613825721469

sales06@yuyangtest.com

86-769-26622869

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

Touchscreen Frequency Induction Heating 200kw IGBT High Quality Heat Treatment Machine for Pipeline Surface

This advanced induction heating equipment utilizes parallel-connected IGBT inverter circuits, offering exceptional load adaptability. The system delivers high power output, rapid heating speeds, operational efficiency, and user-friendly controls.

Engineered for comprehensive full-load operation, this machine supports continuous 24-hour industrial use. Compared to conventional heating methods, it significantly enhances economic benefits, improves workpiece quality, conserves energy and materials, reduces labor intensity, and creates superior production environments.

Applications

Heating Applications

Hot forging for shaping workpieces using punch presses and forging machines
Hot fitting for metal connections and composite materials
Smelting for melting metals into liquid form

Heat Treatment (Surface Quenching)

Designed to modify metal material rigidity through precision heat treatment processes:

Quenching for tools, automotive components, electric tools, and machine tools
Quenching for various hardware metal parts and machined components (shafts, gears, cams, chucks, clamps)
Quenching for hardware molds, small-size molds, mold accessories, and inner holes
Hardening of mechanical parts, gears, shafts, and mold components

Welding Applications

Braze welding, silver soldering, and brazing operations
Welding of cutting tools, mechanical gadgets, and composite materials
Specialized applications for pot bottom welding and heating elements

Annealing Processes

Annealing of various stainless steel products including basins, extruded cans, folded edges, sinks, tubes, tableware, and cups
Tempering and modulation processes

Machine Images

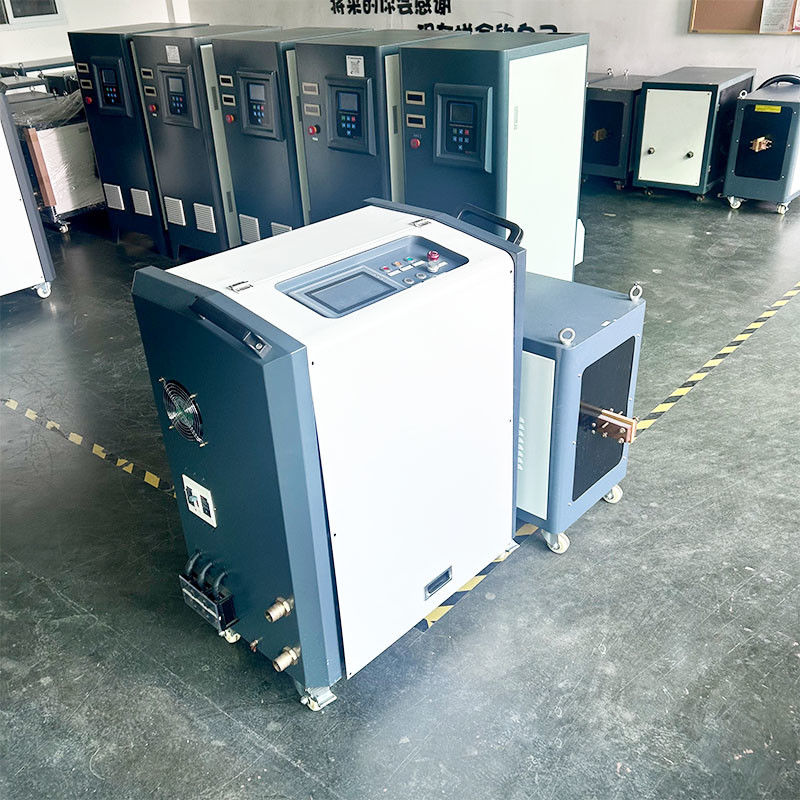

Front View

Internal Components

Cooling System

Machine Features

Advanced Power Technology

Utilizes imported high-quality IGBT solid power modules with advanced frequency conversion technology

Continuous Operation

Advanced cooling system enables 24-hour continuous operation at maximum power capacity

Efficient Control

Constant current and power control functions for improved heating efficiency and energy conservation

Easy Installation

Simple setup process - operational after connecting to 380V power and water supply systems

Programmable Operation

Programmable timing function with adjustable heating time, heat-preservation time, and current settings

Comprehensive Protection

Integrated self-diagnosis system with multi-level protection against overvoltage, overcurrent, overheating, and phase loss
