High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction

High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction

High Precision Climate Test Chamber

Programmable Temperature and Humidity Test Chamber

SUS#304 Stainless Steel Environmental Test Chamber

Τόπος καταγωγής:

Κίνα

Μάρκα:

YUYANG

Πιστοποίηση:

CE

Αριθμό μοντέλου:

ΕΥΕ009

Επικοινωνήστε μαζί μας
Ζητήστε ένα απόσπασμα
Πληροφορίες για το προϊόν
Επισημαίνω:

High Precision Climate Test Chamber

,

Programmable Temperature and Humidity Test Chamber

,

SUS#304 Stainless Steel Environmental Test Chamber

Όροι πληρωμής και αποστολής
Ποσότητα παραγγελίας min
1 σετ
Τιμή
negotiable
Συσκευασία λεπτομέρειες
Θήκη από κόντρα πλακέ
Χρόνος παράδοσης
15-20 εργάσιμες ημέρες
Όροι πληρωμής
L/C,T/T,Western Union
Δυνατότητα προσφοράς
2 σύνολα το μήνα
Περιγραφή του προϊόντος
High Precision Programmable Constant Temperature and Humidity Machine
Climate Chamber Room Control Climate Test Cabinet for precise environmental testing applications
Product Specifications
Item Name Temperature and humidity test chamber
Capacity (L) 80, 150, 225, 408, 500, 800, 1000L
Performance Specifications
Control Methods: Balanced temperature humidity control system (BTHC) PID intelligent adjust
Temperature Range: -70°C to 150°C
Humidity Range: 20% to 98% R.H.
Accuracy: ±1.0°C, ±2%RH / ±0.5°C, ±2%RH
Resolution: ±0.1°C, ±0.1%RH / ±1°C, ±3%RH
Heating Rate: ≤3°C/min
Cooling Rate: Average 1°C/min
Construction Materials
Internal Material: SUS#304 stainless steel
External Material: SUS#304 stainless steel or Antirust processing cold-rolled steel sheet (Spray)
Insulation Material: Superfine wool + polyurethane foam
Regulation System
Cooling Mode: Mechanical binary refrigeration way
Compressor: Closed compressor (French Tecumseh or German Copeland)
Refrigerant: R23/R404A
Condensing Way: Air-cooling and Water-cooling
Humidifier: Stainless steel humidifying tube
Airflow Way: Broadband-type forced air circulation
Controller System
Operate Interfaces: Korea TEMI 880 LCD touch screen
Memory capacity: 120 groups, each program 100 segment
Input: PT100 or T thermocouple
Communicate Interface: RS-232
Subsidiary Functions
  • Upper and lower alarm
  • Self diagnosis
  • Alarm display (fault cause)
  • Time sequence protection (Automatic turn on or turn off)
Water Supply System
Water supply: Circulating water supply
Water tank: Built-in hand type (30Kg capacity)
Water quality: resistance >500Ω.m
Standard Configuration
  • One observe window (Double hollow toughened glass)
  • One test pattern D50mm (on the left)
  • 2 layers sample frame
  • One floodlight (fluorescent lamp)
  • One water feeding tank
Safety Devices
Comprehensive safety protection including: Power leakage protection; Dry heating protection; Water protection; Over-temperature protection switch; Temperature deviation alarm; Compressor Overpressure; overload; Water shortage; Phrase shortage, and more.
Power Supply
220VAC ±10% 50/60Hz & 380VAC ±10% 50/60Hz
Product Images

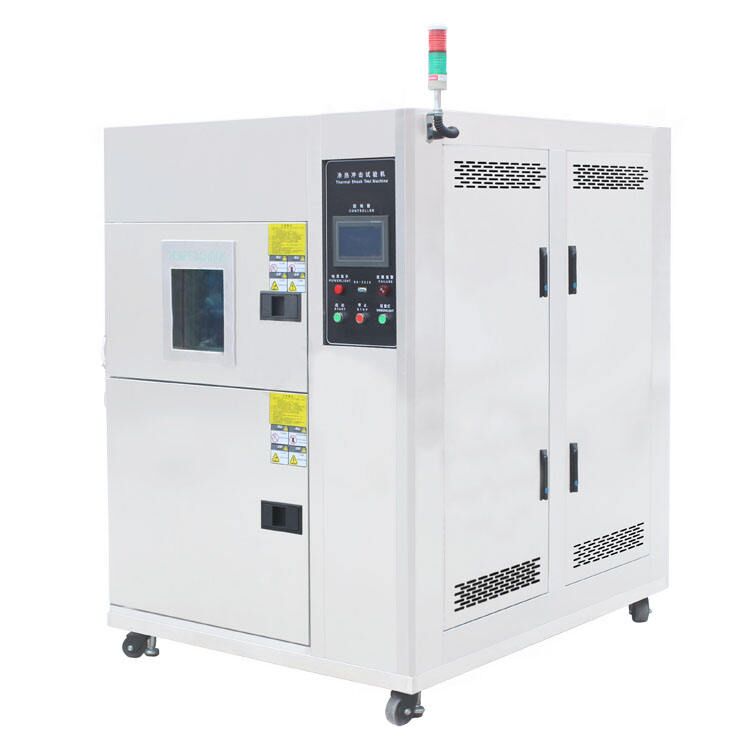

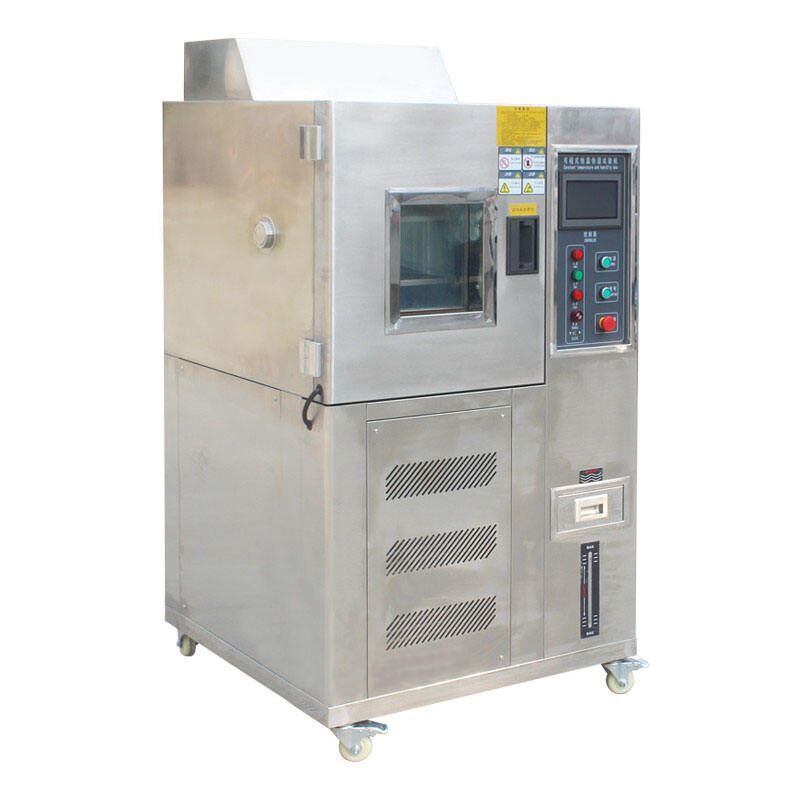

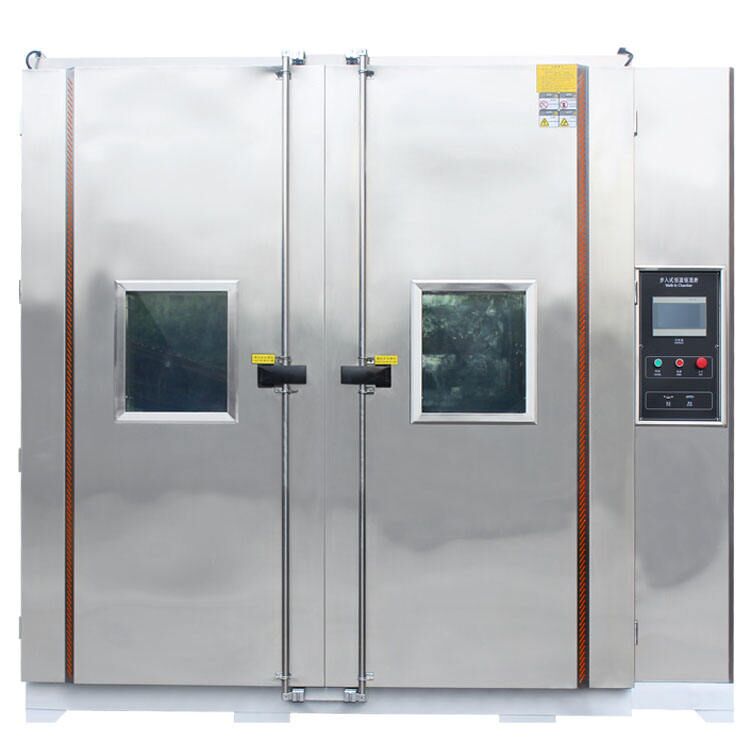

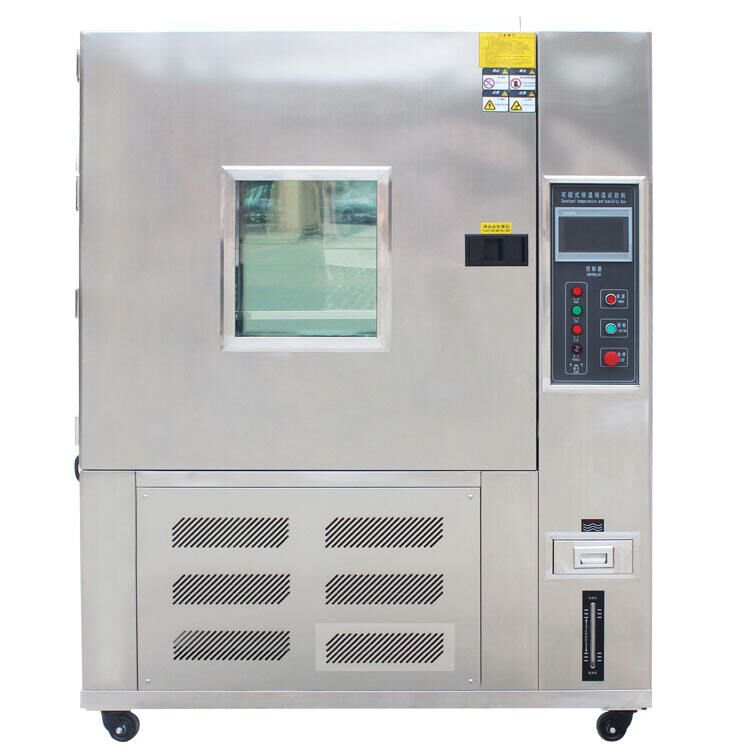

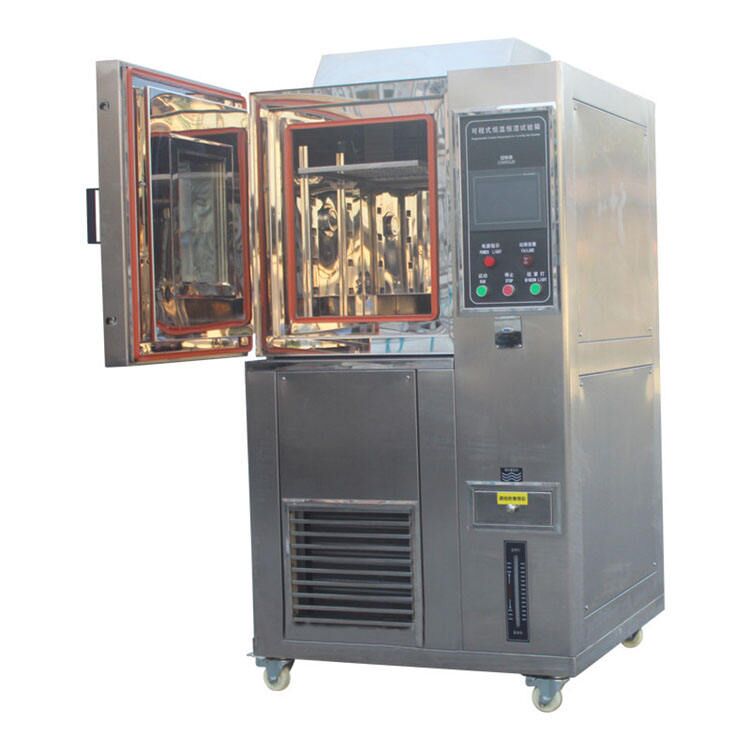

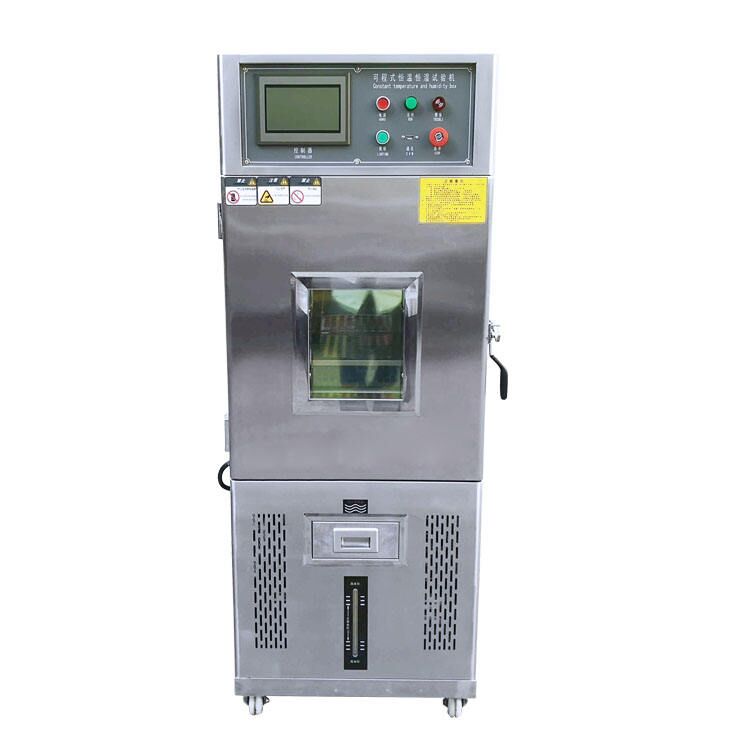

High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 0 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 1 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 2 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 3 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 4 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 5 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 6
