Name: BS476-6 Building Materials Flammability Testing Equipment 530J/S 1kPa
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF015
Price: 5000 USD
Availability: InStock

Σπίτι > προϊόντα > Εξοπλισμός δοκιμής ευφλέκτου >

BS476-6 Building Materials Flammability Testing Equipment 530J/S 1kPa

BS476-6 flammability testing equipment 530J/S

building materials flammability tester 1kPa

flammability testing equipment with warranty

Τόπος καταγωγής:

Κίνα

Μάρκα:

YUYANG

Πιστοποίηση:

Αριθμό μοντέλου:

YYF015

Επικοινωνήστε μαζί μας

Ζητήστε ένα απόσπασμα

BS476-6 Building Materials Flammability Testing Equipment 530J/S 1kPa

Πληροφορίες για το προϊόν

Όνομα προϊόντος:

Ελεγκτής δείκτη διάδοσης πυρκαγιάς

Απελευθέρωση θερμότητας λαμπτήρα:

530J / S

Χρήση:

Ελεγκτής δείκτη διάδοσης πυρκαγιάς

Θερμοκρασία περιβάλλοντος:

Λειτουργία 10°C σε 35°C

Ηλεκτρικός:

230 βολτ ονομαστικών 10 AMPS

Πίεση:

1KPa

Ροή:

ως ροή για καυστήρα ρυθμιζόμενη από 0 έως 5 nl/min

Διαστάσεις:

Συσκευή: 400mm (W) X 600mm X (H) X 300mm (D)

Βάρος:

περίπου 50 κιλά

Πακέτο μεταφοράς:

θήκη από κόντρα πλακέ

Επισημαίνω:

BS476-6 flammability testing equipment 530J/S

building materials flammability tester 1kPa

flammability testing equipment with warranty

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 τεμ

Τιμή

$5000

Συσκευασία λεπτομέρειες

Ξύλινο κουτί

Χρόνος παράδοσης

7-30 ημέρες

Όροι πληρωμής

T/T

Συγγενικά προϊόντα

BS476-6 Building Materials Flammability Testing Equipment 530J/S 1kPa

Βρείτε την καλύτερη τιμή

Βίντεο

Μηχανή δοκιμής πυκνότητας καπνού καύσης ή αποσύνθεσης οικοδομικών υλικών

Βρείτε την καλύτερη τιμή

High-Precision Tester: Glass/Metal/Plastic 3/4-Point Bending, Tensile & Compression

Βρείτε την καλύτερη τιμή

Συσκευή Δοκιμής Αναφλεξιμότητας Δομικών Υλικών EN ISO 11925-2

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

8613825729462

sales03@yuyangtest.com

86-769-26622869

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

BS476-6 Building Materials Flammability Testing Equipment 530J/S 1kPa

BS476-6 Fire Propagation Index Tester for Building Materials and Structures

BS 476 part 6 specifies a method of test where the result is expressed as a fire propagation index, providing a comparative measure of the contribution to the growth of fire made by an essentially flat material, composite or assembly. This equipment is primarily intended for the assessment of the performance of internal wall and ceiling linings.

During testing, the specimen is exposed to a tubular torch with a heat release of 530J/S. After 2 minutes and 45 seconds, two electric heaters are adjusted to 1800 watts total. Five minutes after test initiation, power is reduced to 1500 watts and maintained until test completion, with a total test duration of 20 minutes.

The apparatus assesses flame propagation properties by continuously recording chimney temperature and room temperature difference using thermocouples. Results are compared with calibration curves based on asbestos-cement slab density measurements. Temperature differences are recorded at 30-second intervals for the first 3 minutes, 1-minute intervals for minutes 4-10, and 2-minute intervals for minutes 11-20. Flame spread indices for these three periods are calculated according to standard formulas.

The final index (I) represents the sum of the three period flame spread indices. Higher I values indicate lower material flame retardancy, with grade 0 materials having I ≤ 12.

Standards Compliance

BS 476 Part 6 A1: 2009

GB/T 17658-1999

Key Features

Stainless steel support frame and Calcium silicate board combustion chamber
Three sample holders for different specimen thicknesses
Low reflective black finished mild steel Chimney and Cowl assembly with thermocouple mounting points
Compliant stainless steel gas burner
Two K type mineral insulated thermocouples with ceramic insulators
Two pencil type heaters with 1000w installed in combustion chamber
Control gas instrumentation including electronic gas on/off valve, flow regulating valve, flow meter and manometer
Intelligent single phase power controller with feedback loop for accurate control of electric heating elements
DAQ automatically records mV output from thermocouples throughout test duration
Automatically adjusts output power according to test time

PC Controlled Fire Propagation Apparatus - Walls And Ceilings Flame Spread Test

Specification	Details
Electrical	230 volts Nominal 10 Amps
Ambient Temperature	Operating 10°C to 35°C
Gas Supplies	Standard test gas G112, as specified in BS 4947
Flow	Gas flow for burner adjustable from 0 to 5 nl/min
Pressure	1kPa

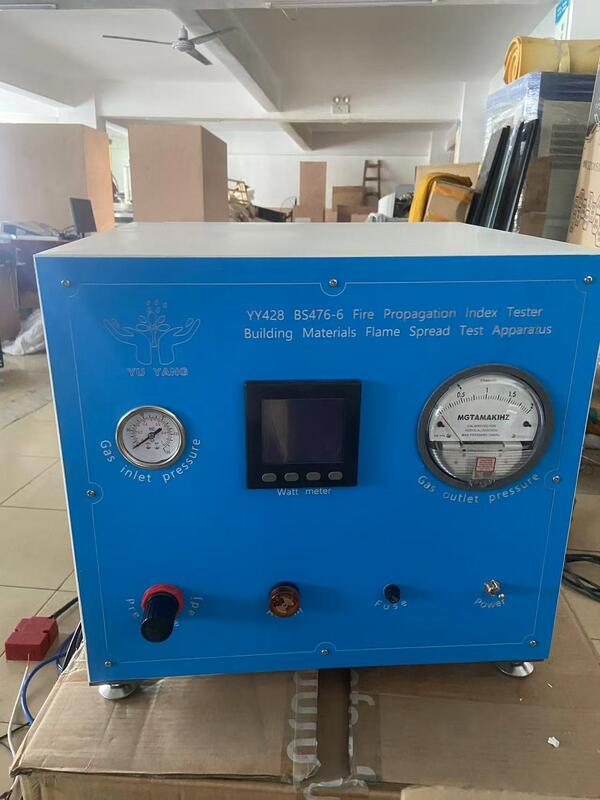

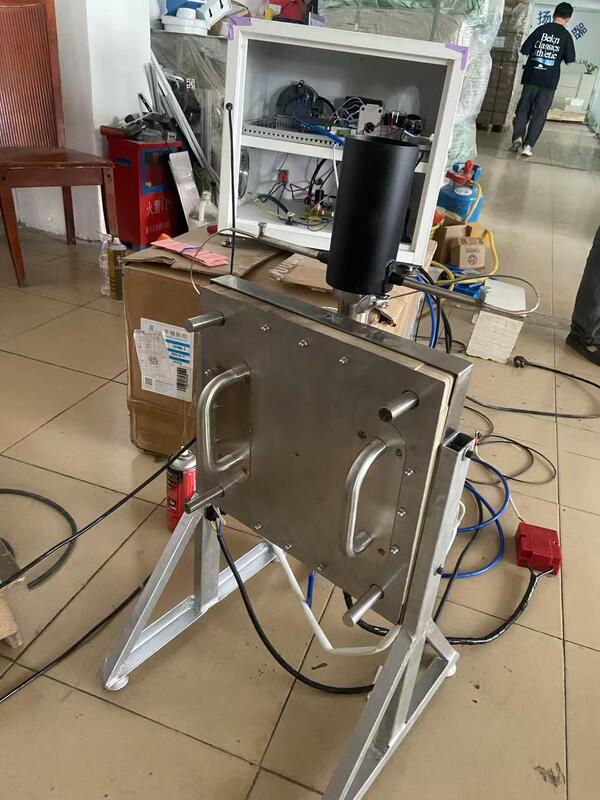

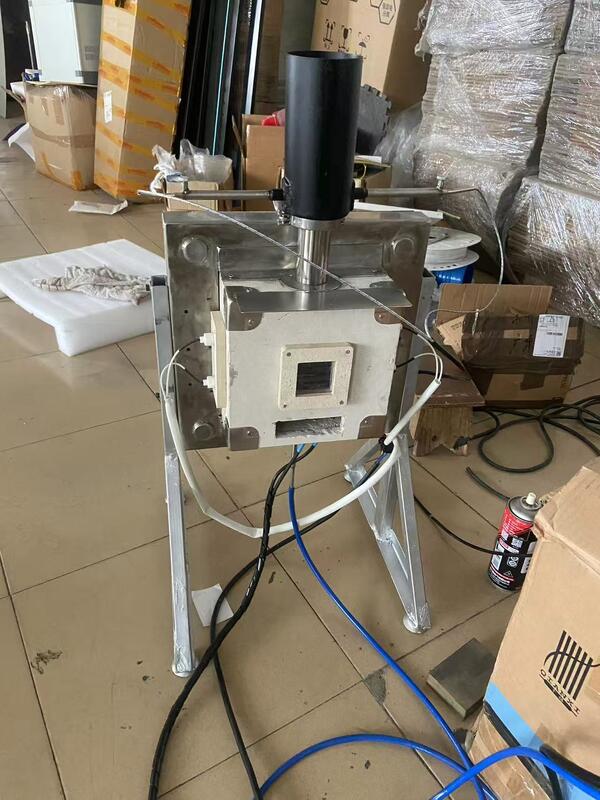

Product Images
