Name: Building Materials Ignitability Flammability Tester for Single Flame Source Test
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY510
Price: 25,000.00 USD
Availability: InStock

Σπίτι > προϊόντα > Εξοπλισμός δοκιμής ευφλέκτου >

Building Materials Ignitability Flammability Tester for Single Flame Source Test

flammability tester for building materials

single flame source flammability tester

building materials ignitability testing equipment

Τόπος καταγωγής:

Κίνα

Μάρκα:

YUYANG

Πιστοποίηση:

Αριθμό μοντέλου:

YY510

Επικοινωνήστε μαζί μας

Ζητήστε ένα απόσπασμα

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Πληροφορίες για το προϊόν

Ταχύτητα αέρα καύσης:

0.7m/s μόνο στον όρο της κουκούλας καψίματος και έλξης καυστήρων ανοικτής

Τροφοδοσία:

AC220V±10%,50Hz

Φούρνο δοκιμής σήραγγας:

3. Μήκος 7.62m, ανοιχτό τμήμα διατομής 0.45m * 0.3m, μέγιστη θερμοκρασία Firebrick 2500 ℃

Γωνία καυστήρα:

45 °

Πηγή αερίου:

> 95% αέριο προπανίου · (ο χρήστης πρέπει να παρέχει για τον εαυτό του)

Πίεση αερίου:

10kpa~50kpa

Επισημαίνω:

flammability tester for building materials

single flame source flammability tester

building materials ignitability testing equipment

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

Σύνολο/σύνολα

Τιμή

pending

Χρόνος παράδοσης

Όροι πληρωμής

L/c, t/t

Δυνατότητα προσφοράς

Συγγενικά προϊόντα

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Βρείτε την καλύτερη τιμή

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Βρείτε την καλύτερη τιμή

YY-121 Building Materials Difficult Flammability Test Equipment

Βρείτε την καλύτερη τιμή

Βίντεο

Θάλαμος βιολογικής ασφάλειας κατηγορίας II A2 με βάθος 780mm

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

86-769-26622869

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

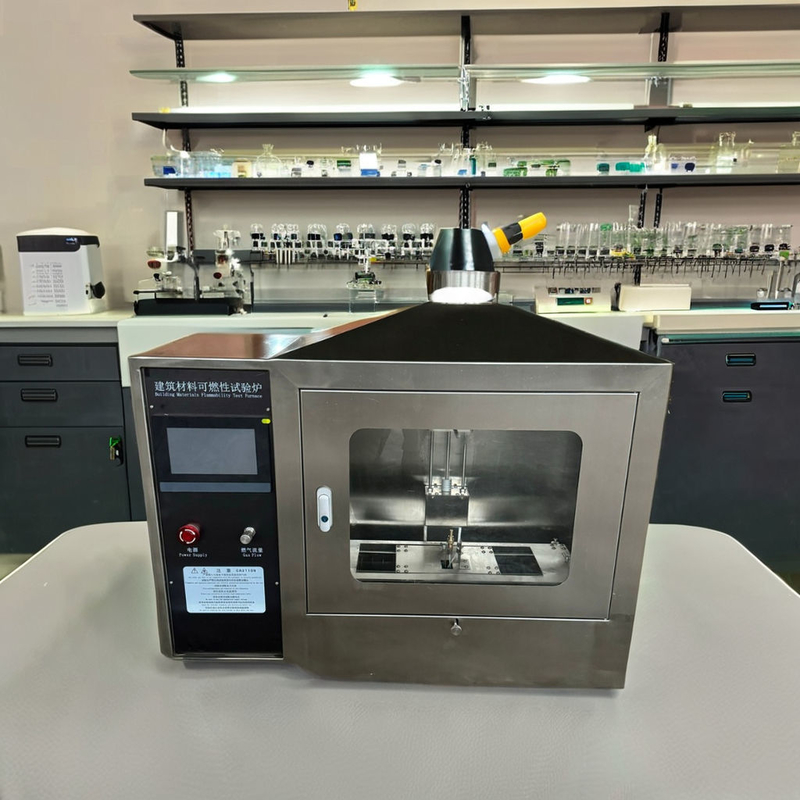

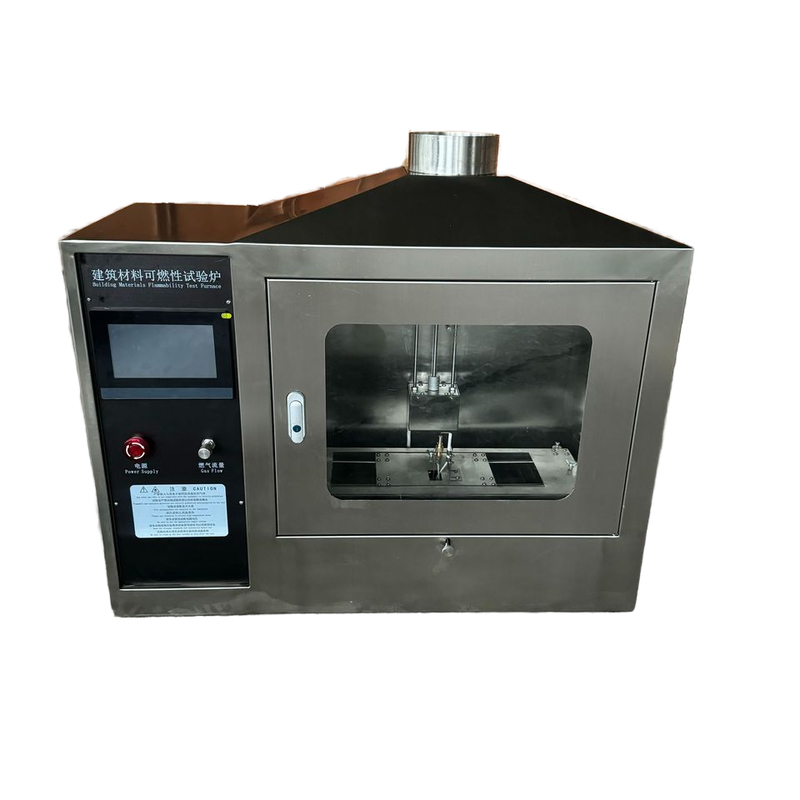

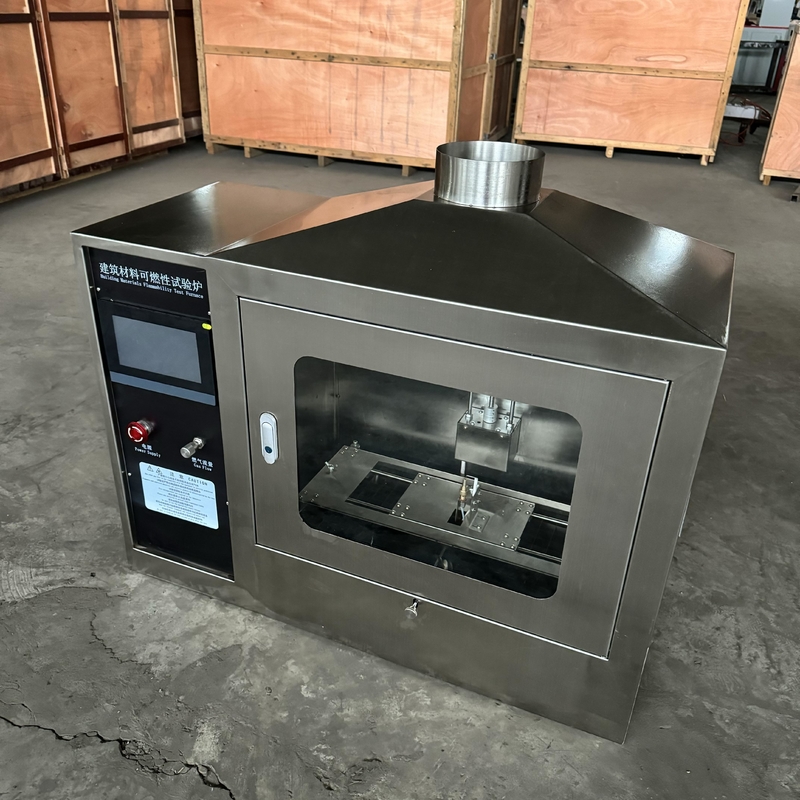

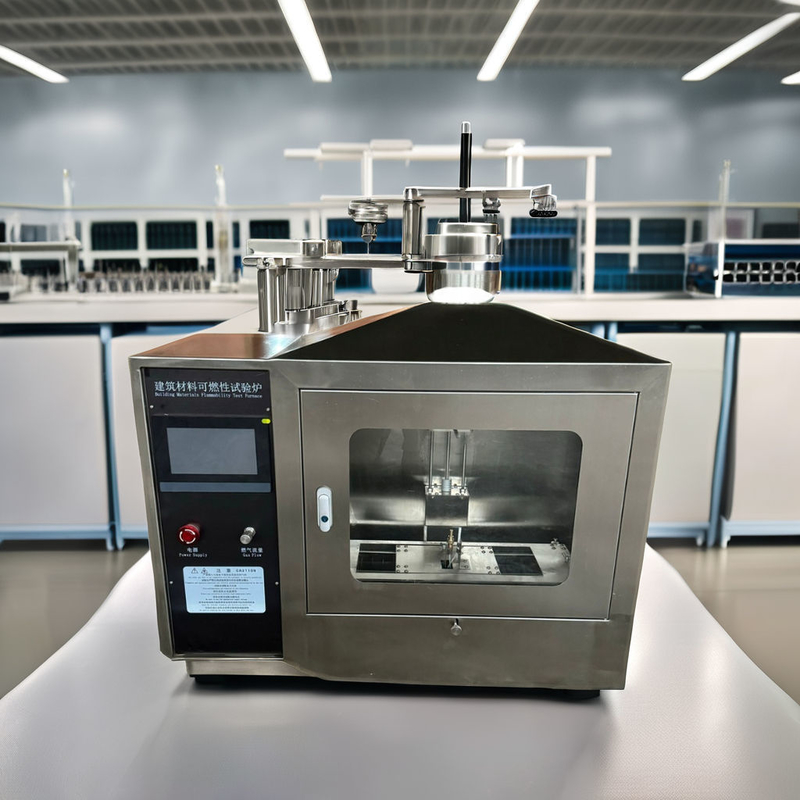

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Ignitability test, also called single-flame source test. Test apparatus corresponds to standard EN ISO 11925-2. Test results of the building structure can be classified according to standard 13501-1.

The dimensions of the test specimens shall be (250) mm long by (90) mm wide.

45°-tilted burner is advanced horizontally until the flame (length 20 mm) reaches the pre-set contact point with the test specimen. Tests may need to be conducted to either surface exposure or edge exposure, or both. The flame application time is 15 or 30 seconds as required by sponsor.

During the test following is recorded: whether ignition occurs; whether the flame tip reaches 150 mm above the flame application point, and the time at which this occurs; whether ignition of the filter paper occurs; observations of physical behavior of the test specimen.

Specifications

This apparatus made up of two parts: burning chamber and control device.
Power supply: AC220V±10%,50Hz
Burner: diameter 0.17mm burner with regulator; four ￠4mm air suction inlet
Gas source: >95% propane gas (user should provide for themselves)
Gas pressure: 10kpa~50kpa
Flue air velocity: 0.7m/s only on condition of burner burning and draught hood open
Time adjustment of continuous flame: 0 ~ 99minutes99seconds
Time adjustment of afterflame: 0 ~ 99minutes99seconds
Timer accuracy: ≤1s/h
Anemometer: hot wire, accuracy ±0.1m/s, for measuring the airflow velocity in the upper outlet of the combustion chamber
Burner angle: 45°
Material: stainless steel
Observing window: two big viewing windows on the front and right side
Whole set: control device, burning chamber, burner, magnetic valve, flame lighter, signal control line and specimen holder
Equipped with a digital anemometer/thermometer and a stopwatch for simple but accurate measurement of the flow, temperature and time

Standards

GB/T8626-2007 Test Method of Flammability for Building Materials
EN ISO 11925-2:2010-Reaction to fire tests- Ignitability of building products subjected to direct impingement of flame-Part 2: Single-flame source test

Specimen Holder

Packing List

NO.	Name	Quantity	Packing Mode
1	Collector	1
2	Specimen holder	2
3	Template	2
4	Burner spacer	2	5mm-16mm
5	Flame-height measuring device	1
6	Igniter	1
7	Aluminum foil paper	1
8	Filter Paper	1
9	Anemometer	1
10	Instruction Manual	1
11	Quality Assurance	1
12	Product Certificate	1
13	Warranty Card	1
